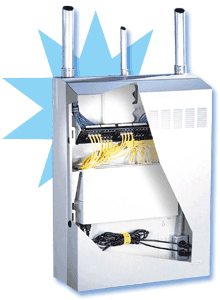

The REBOX Cabinets are specifically designed for housing remote and network equipment.

REBOX cabinets exceed the stringent requirements of UL and Telcordia enclosure standards. The resulting safe and secure envrionment surpasses the industry for protecting communications equipment in locations such as classrooms, warehouses, and retail outlets.

Use the pre-configured REBOX as a small remote data center. Each cabinet includes dedicated mounting for hubs and other active equipment and another dedicated mounting area for patch panels.

Use the unloaded REBOX in applications such as horizontal cross connects or the telecommunications room. The modular design of this cabinet is very versatile, allowing the installer to configure the cabinet with a wide variety of accessories to mount any type of components.

Features and Specifications:
  • Cable entry knockouts for conduit sizes from 1/2" to 1.5"
  • Unique knockout for metal and PVC raceway
  • Accommodates fiber and multi-media Snap Fit connectors
  • Patch panel bracket allows bottom-hinged, front-access termination
  • Flexible mounting for active equipment including hubs and UPS
  • Door lifts off when open for easy installation, hinge easily reversed in the field
  • Pre-configured, surge-protected power and fan
  • Engineered airflow to prolong the life of active equipment
  • Easily expanded in the field to support future growth
  • Mounting for 19" patch panel hinges down for front access termination
  • Durable powder coat finish protects equipment in isolated locations
  • Wide range of standard kits for maximum versitility
  • Knife-edge design and slopped door resists dust, water, and vandalism
  • 16 gauge CRS welded construction
  • Designed specifically for hostile envrionments:
    • Tamper resistant per Tecordia GR-487-CORE
    • Ventilation pattern developed to comply with UL 1950
    • Designed to meet NEMA 2
  • 2 sets of universal mounting rails with #12-24 tapped holes 5/8", 5/8", 1/2" EIA standard pattern
  • Load capacity: 100 lbs
  • Accepts maximum hub depth of 14.5" (RE2 and RE4) or 22" (RE4X)
  • Abundant cable entry through sides, bottom, and top - compatible with major raceway and popular conduit sizes
  • Designed to dissipate 160W - industry maximum without fan
  • Weight:
    • RE4 = 50.6 lbs.
    • RE2 = 45.1 lbs.
  • Usable rack space:
    • RE2: 2-switch, 2-panels
    • RE4: 5-switch, 4-panels
    • RE4X: 5-switch, 4-panels



Pre-Configured Cabinet Includes:
16 guage equipment cabinet specifically designed for housing remote and network equipment. Includes dedicated mounting for hubs and other active equipment as well as dedicated mounting area for patch panels.

  • 1 base/rear section with welded 19" brackets for 2 hubs
  • 1 front door with 2 locks (NSQ tool)
  • 1 set 19" extension brackets for 2 additional hubs (RE4 only)
  • 1 set 19" bottom hinge brackets for patch panels

REBOX - Remote Equipment Cabinet (Pre-configured)
Catalog No.CapacityMax. Hub DepthHeightWidthDepthColor
RE22 hubs14"32.0"24.2"7"Light gray
RE2B2 hubs14"32.0"24.2"7"Black
RE44 hubs14"32.0"24.2"10"Light gray
RE4B4 hubs14"32.0"24.2"10"Black
RE4X4 hubs22"42.0"24.2"10"Light gray
RE4Xb4 hubs22"42.0"24.2"10"Black





Unloaded Cabinet Includes:
16 guage equipment cabinet specifically designed for housing remote and network equipment. Use for horizontal cross connects or small telecommunications rooms. The unloaded REBOX can be configured to accept wall mount, rack mount connecting hardware and active equipment. The mounting rails are not included, providing for flexibility to configure your requirments.
  • 1 base/rear section
  • 1 front door with 2 locks (NSQ tool)

REBOX - Remote Equipment Cabinet (Unloaded)
Catalog No.Rear Wall UnitsHeightWidthDepthColor
IDF24324"24.2"10"Light Gray
IDF32432"24.2"10"Light Gray
IDF42542"24.2"10"Light Gray




REBOX Accessories



REBOX Accessories
ImageCatalog #DescriptionDelivery Includes
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKTJTop-to-bottom kit for us with all REBOX cabinets - Finish: light gray
  • 1 shroud
  • 16 ga cold rolled steel
  • 1 mounting hardware kit
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKSJ20Side-by-side kit for use with IDF24 - Finish: light gray
  • 1 shroud
  • 16 ga cold rolled steel
  • 1 mounting hardware kit
-REKSJ30Side-by-side kit for use with RE2, RE4, and IDF32 - Finish: light gray
  • 1 shroud
  • 16 ga cold rolled steel
  • 1 mounting hardware kit
-REKSJ40Side-by-side kit for use with RE4X and IDF42 - Finish: light gray
  • 1 shroud
  • 16 ga cold rolled steel
  • 1 mounting hardware kit
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKU(B)Converts an RE2 to an RE4 for added space - Available in light gray (REKU) or black (REKUB)
  • 1 RE4 door
  • 2 hub mounting expansion brackets
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKFIncreases ventilation - Order 1 per RE2, 2 per RE4, RE4X, and IDFXX
  • 1 57 CFM fan
  • 1 2' line cord
  • 1 Hubbell Valise 2-prong plug
  • 1 kit assembly hardware
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKFFDust filter for air intake when using fans (for RE4, RE4X, IDF only)
  • 1 mounting bracket
  • 2 foam filters
  • 1 assembly hardware kit
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKSUse to dampen noise generated from active eguipment in cabinet
  • Dow quash foam pieces
  • Pre-cut to line cabinet interior
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKGEnhances protection against dust and water, and performance of fan kit
  • 1 10' roll adhesive-backed gasket





REBOX Accessories (Rear Wall Configuration)
ImageCatalog No.DescriptionDelivery Includes:
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKBB20Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (20"(H), 4 rear panel spaces)
  • 1 sheet 3/4" APA Grade AC plywood coated with fire retardant white paint
  • 4 mounting brackets
  • 4 mounting screws
-REKBB30Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (30"(H), 5 rear panel spaces)
  • 1 sheet 3/4" APA Grade AC plywood coated with fire retardant white paint
  • 4 mounting brackets
  • 4 mounting screws
-REKBB40Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (40"(H), 7 rear panel spaces)
  • 1 sheet 3/4" APA Grade AC plywood coated with fire retardant white paint
  • 4 mounting brackets
  • 4 mounting screws
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKZProvides 5U of 19" rack space for rack mount hubs and switches. Space occupied on rear wall dependent upon size of equipment.
  • 2 110/66 block mounting rails
  • 20 #10-24 x 1/2" screws
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREK110Accepts (5) 100-pair 110 blocks with legs or (5) devices mounted on 89B brackets such as 66 blocks or 12 port panels. Occupies 2 rear panel spaces.
  • 2 brackets:
    • 1 left hand
    • 1 right hand
rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREK19Provides 4U of 19" rack space to mount patch panels. Hinges down to provide access to rear of panel for ease of termination. Occupies 1 rear panel space.
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKPOccupies left or right side of 1 rear panel space.
    • 1 Hubbell surge-protected duplex receptacle with audible alarm (HBL5262IS)
    • 1 single-gang work box
    • 6' Hubbell Polytuff flexible non-metallic conduit
    • 1 stainless steel face plate
    • 1 assembly hardware kit
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKFPAccepts one fiber FSP adapter panel. Occupies no rear panel spaces.
    • 1 fiber optic bracket



    Accessories for REBOX and QuadCab
    ImageCatalog No.DescriptionDelivery Includes
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxMCCBP350Use as shelf in REBOX.
    • 1 filler panel 2U
    • 1 kit mounting hardwar
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxCTKAdhesive mounting bracket can be located along cabinet interior as appropriate.
    • 1 thermostat
    • 1 adhesive-backed mounting bracket
    • 1 wiring harness
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxCKL751Use to change key type to meet your application for both QuadCab and REBOX. (Standard kit to replace existing lock)
    • 1 assembly lock and key
    -CKL333Use to change key type to meet your application for both QuadCab and REBOX. (Change key from CH751 to 333)
    • 1 assembly lock and key
    -CKL716Use to change key type to meet your application for both QuadCab and REBOX. (To convert to Bellcor 716 lock)
    • 1 assembly lock and key
    -CKLEUse to change key type to meet your application for both QuadCab and REBOX. (To convert to European lock)
    • 1 assembly lock and key
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKHAllows user to secure cabinet with padlock.
    • 2 padlock hasp sets
    • 1 kit assembly hardware
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKMT10Mates MT10 large capacity, 3-channel, non-metallic surface raceway to top of REBOX and IDF cabinets to deliver both electrical and communication cables.
    • 1 base, 16 ga. cold rolled steel
    • 1 cover, 16 ga. cold rolled steel
    • 1 cover hardware kit
    rebox, wall mount cabinets, remote equipment cabinet, hubbell reboxREKGBUse to ground cabinet components to common ground. Can be used in conjunction with the MCCGBAR and HPW-CGPK10.
    • 1 grounding bar
    • 1 ground strap w-ring terminals
    • 1 ground strap w-ring terminal + female faston


    Click here to view Hubbell's REBOX Remote Equipment Cabinet PDF.
